Fluorescent Penetrant Inspection 101

What is Fluorescent Penetrant Inspection (FPI)?

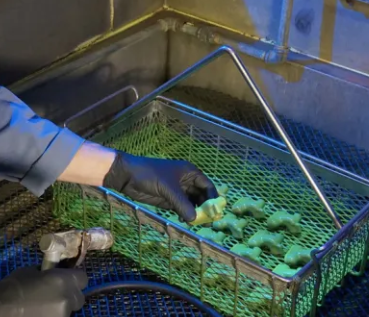

Fluorescent Penetrant Inspection (FPI) is a non-destructive testing method used to detect surface-breaking defects in metallic and non-metallic components. The process uses a liquid penetrant containing fluorescent dye that seeps into cracks, fractures, inclusions, and other discontinuities that may not be visible to the naked eye.

After the dye is applied, the inspected surfac is examined under ultraviolet (UV) light. Any penetrant trapped within the surface flaws glows brightly, allowing inspectors to cleary identify potential defects that could impact the performance or safety of a component.

Fluorescent penetrant inspection is commonly used to evaluate metal castings, forging, machine parts, and fabricated components used in demanding industrial environments. As part of broader non-destructive testing services, FPI helps manufacturers verify part integrity without damaging the material being tested.

What Are the Advantages of FPI?

Fluorescent penetrant inspection is widely used across many industries because it provides an efficient way to identify surface-level defects without damaging the inspected component. The method offers several advantages for manufacturers and quality assurance teams, including:

• High Sensitivity: FPIcan detect very small surface-breaking flaws that may not be visible during standard visual inspections
• Material Compatibility: FPI can be used to inspect a wide range of metallic and non-metallic materials with smooth, non-porous surfaces
• Cost-Efficiency: Large surface areas, complex shapes, and high volumes of parts can be inspected efficiently
• Fast Turnaround: The FPI process is relatively quick, providing prompt results to meet tight timelines

How the Flourescent Penetrant Inspection Process Works?

The fluorescent liquid penetrant inspection process follows five primary steps: pre-cleaning, penetrant application, excess penetrant removal, inspection, and post-cleaning.

1. Pre-Cleaning:

The test surface is cleaned to remove any dirt, paint, oil, grease, or any loose scale that could either keep penetrant out of a defect or cause irrelevant or false indications. Cleaning methods may include solvents, alkaline cleaning steps, vapor degreasing, or media blasting.

2. Penetrant Application:

The penetrant is then applied to the surface of the item being tested. The penetrant is allowed to soak into any flaws. Smaller surface defects often require a longer longer penetration time to allow the dye to fully enter the flaw.

3. Excess Penetrant Removal:

The excess penetrant is then removed from the surface. The removal method is controlled by the type of penetrant used. Water-washable or solvent-removable, or hydrophilic post-emulsifiable penetrants are the common choices. Emulsifiers represent the highest sensitivity level, chemically interacting with the oily penetrant, making it removable with a water spray.

4. Inspection:

Inspectors examine the test surface under appropriate lighting conditions. Visible dye penetrant inspection typically requires high-intensity visible light (100 foot-candles or 1100 lux is typical), while fluorescent penetrant examinations are performed under ultraviolet (UV-A) radiation of sufficient intensity (1,000 micro-watts per centimeter squared) and low ambient light levels. Depending on the component, inspection of the test surface should take place after 10- to 30-minute development time, allowing time for the penetrant to bleed into surface defects. This time delay allows the blotting action to occur. The inspector may observe the sample for indication formation when using visible dye. It is also good practice to observe indications as they form because the characteristics of the bleed-out are a significant part of the interpretation characterization of flaws.

5. Post Cleaning:

The test surface is often cleaned after inspection and recording of defects, especially if post-inspection coating processes are scheduled.

Industries That Use Fluorescent Penetrant Inspection

Fluorescent penetrant inspection is commonly used to verify the surface integrity of critical components during manufacturing and quality assurance processes. At American Metal Testing, our team provides fluorescent penetrant inspection services for a wide range of applications at our Indiana non-destructive testing facility. Industries that frequently rely on fluorescent penetrant inspection include:

• Aerospace and Aviation
• Defense and Military
• Automotive Manufacturing
• Oil and Gas Processing
• Power Generation
• Transportation
• Maritime & Marine
• Wind Energy
• Nuclear Industry
• Medical Devices Manufacturing

How Does Fluorescent Pentrant Inspection Compare to Other NDT Testing Methods?

Fluorescent penetrant inspection is one of several non-destructive testing processes. Other common inspection processes include magnetic particle testing (MPI) services and radiographic (x-ray) metal testing services. Each testing method offers unique advantages depending on the material being inspected and the type of discontinuities that must be detected. Since different testing methods are designed to identify different types of flaws, NDT professionals should be consulted to ensure the proper process is chosen for each application based on the material, geometry, and inspection requirements of the component.

Advantages of FPI Compared to Other Non-Destructive Testing Methods

• Relatively quick testing process, providing results much faster than radiographic testing
• Compatible with a wider range of metallic and non-metallic materials than other NDT testing methods
• Relatively cost-effective method compared to more complex inspection processes, such as radiographic inspections
• Can be used to inspect components that may be too large or complex for other methods

Limitations of Fluorescent Penetrant Inspection

• FPI cannot detect subsurface discontinuities within a component

A Brief History of Fluorescent Penetrant Inspection

Basic liquid penetrant inspection methods began developing toward the end of the 19^th century. Early surface inspection techniques involved applying materials such as carbon black to glazed pottery to highlight surface cracks.

One of the earliest industrial inspection methods, known as the "oil and whiting" method, emerged in railway workshops. In this process, heavy oil diluted with kerosene was used to submerge components like locomotive wheels. After cleaning the surface, a chalk suspension in alcohol created a white coating. Then, vibrating the object caused residual oil in cracks to stain the coating to make them visible.

In the 1940s, fluorescent dyes began being used in liquid penetrant inspection processes. The use of FPI expanded greatly during World War II, when the aerospace industry needed a reliable way to inspect critical components for defects without damaging them. Since then, FPI has evolved and become widely used across many industries for detecting surface flaws in materials.

Fluorescent Penetrant Inspection Services at American Metal Testing

American Metal Testing provides fluorescent penetrant inspection services as part of our non-destructive testing service offerings. Our experienced metallurgy team performs FPI testing at our Indiana NDT lab, where we evaluate metal components to help manufacturers verify surface integrity and meet even the most strict quality standards Our team of experts ensures you receive precise and comprehensive assessments of your metal components, providing prompt, reliable results every time.
